This command will obtain the system error log.
Fieldbus Interface

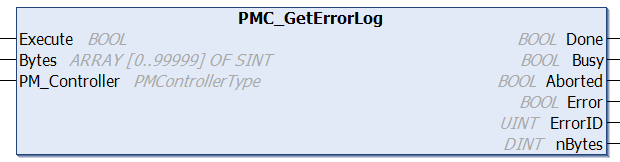

PMC_GetErrorLog
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
Bytes | SINT[0..99999] | The byte array to store the full error log. |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Done | BOOL | Execution successful. Function block is finished. (Note: Done will not become TRUE if Execute is already FALSE) |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |
nBytes | DINT | Number of bytes for the error log. |
Conditions
Operating Conditions |
|---|
Preconditions | None |
Postconditions | The Error Log is stored in "Bytes", the size of the Error Log is stored in "nBytes" |
Description
This command will obtain the system error log.
