Get Flyway Physical Status
This command will obtain the following information about a Flyway.
Power consumption (Watts)
CPU Temperature (Celsius)
Amplifier Temperature (Celsius)
Motor Temperature (Celsius)
Fieldbus Interface

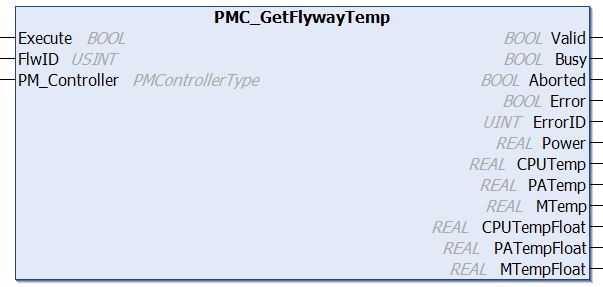

PMC_GetFlywayTemp
Inputs
Name | Data Type | Description |
|---|
Execute | BOOL | Execution of the function block begins on a rising edge of this input. |
FlwID | BOOL | ID of the Flyway, following Flyway Number System. |
PM_Controller | PMControllerType | Data structure that specifies which PMC to connect to. There should be only 1 instance of this variable for each connected PMC. |
Outputs
Name | Data Type | Description |
|---|
Valid | BOOL | TRUE: output values are valid. FALSE: output values are invalid. |
Busy | BOOL | Function block is active and must continue to be called. |
Aborted | BOOL | Command aborted by another command. |
Error | BOOL | If there is an error in processing the command, then Error = TRUE, otherwise, FALSE. |
ErrorID | UINT | 0x0: All OK. Otherwise, please see PMC Reply Codes. |
Power | REAL | Flyway power consumption in watts |
CPUTemp | REAL | CPU Temperature in Celsius, to the nearest degree |
PATemp | REAL | Amplifier Temperature in Celsius, to the nearest degree |
MTemp | REAL | Motor Temperature in Celsius, to the nearest degree |
CPUTempFloat | REAL | CPU Temperature in Celsius, floating point (~0.1 degree resolution) |
PATempFloat | REAL | Amplifier Temperature in Celsius, floating point (~0.1 degree resolution) |
MTempFloat | REAL | Motor Temperature in Celsius, floating point (~0.1 degree resolution) |
Ethernet Interface
FlywayPhysicalStatus GetFlywayPhysicalStatus(int flywayID)
Parameters
Name | Type | Description |
|---|
flywayID | int | ID of the Flyway, following Flyway Number System. |
Returns
Name | Type | Description |
|---|
FlywayPhysicalStatus.PmcRtn | PMCRTN enum | ALLOK (0): Command Accepted. Otherwise, please see Ethernet Reply Codes. |
FlywayPhysicalStatus.powerConsumptionW | float | Flyway power consumption in watts |
FlywayPhysicalStatus.cpuTempC | float | CPU Temperature in Celsius |
FlywayPhysicalStatus.amplifierTempC | float | Amplifier Temperature in Celsius |
FlywayPhysicalStatus.motorTempC | float | Motor Temperature in Celsius |
Conditions
Operating Conditions |
|---|
Preconditions | None |
Postconditions | Flyway physical status is provided in the output |
Description
This command will obtain the following information about a specific Flyway (Flyway Numbering System).
Power consumption (watts)
CPU Temperature (Celsius)
Amplifier Temperature (Celsius)
Motor Temperature (Celsius)
