S3-xS-04.06

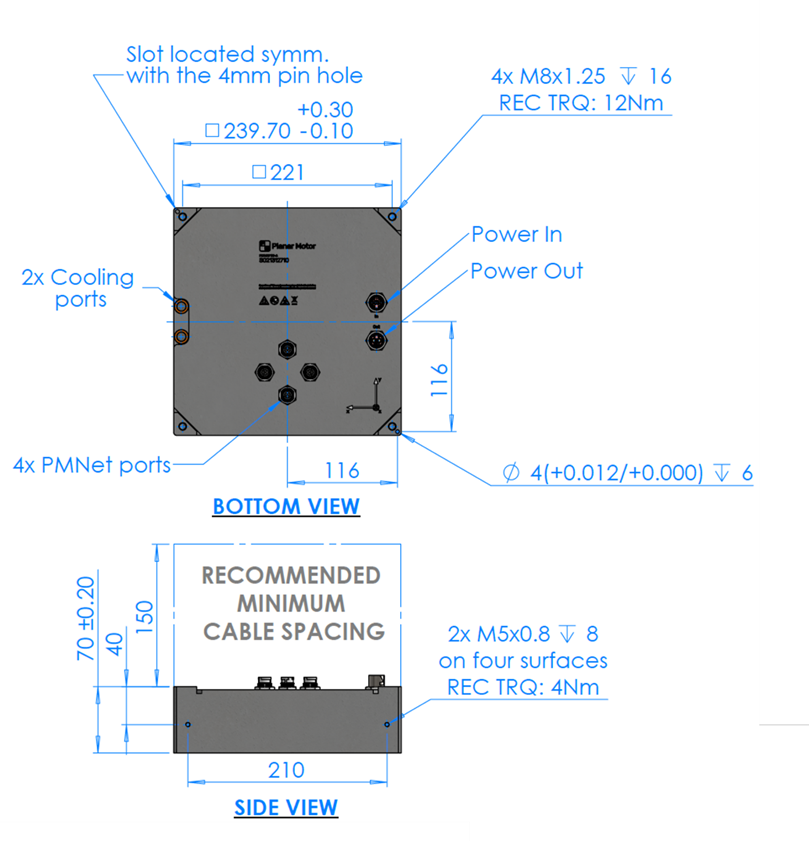

Dimensional drawing of S3-xS-04.06 Flyway
Model number | S3-xS-04.06 |
Power Connection | |
Power Supply | |
Input Voltage | 36 – 58 VDC; Typ. 48 VDC* |
Input Current | 3.0 A (@48 VDC) |
Input Current (peak) | 12.5 A (@48 VDC) |
Power Consumption (max) | 600 W |
DC Bus Capacitance | - |
Max Cable Length | 20 m |
Power Enable Operation Voltage | Low (0 – 4 VDC); High (20.5 - 27.5 VDC) |
DC bus connection | |
Protective measures | |
Overload protection | No |
Short circuit protection | No |
Interfaces | |
Type | PMNet connection to controller and/or adjacent Flyways |
Variant | 4 x PMNet Port |
Connector Type | 4 x M12, 12-Pin Male, A coded with push lock |
Cable Length | 0.6 m between adjacent Flyways |
10 m from PMC | |
Operating Conditions | |
Mounting Orientation | Horizontal |
Installation Elevation Above Sea Level | |
Nominal | 0 m to 500 m |
Maximum | 4000 m |
Protection Class | IP65/IP67** |
Ambient Conditions | |
Temperature (S3-AS, S3-GS) | |
Operation | 5°C to 40°C |
Storage | -25°C to 70°C |
Transport | -25°C to 70°C |
Temperature (S3-TS) | |
Operation | -40°C to 60°C |
Storage | -40°C to 70°C |
Transport | -40°C to 70°C |
Relative Humidity | |
Operation | 5% to 85%, non-condensing |
Storage | 5% to 95% |
Transport | 95% at 40°C |
Mechanical Properties | |
Dimensions | |
Width | 239.7 mm |
Height | 70 mm |
Depth | 239.7 mm |
Weight | 6.6 kg |
Materials | |
Motor | Surface: Black solder mask |
Edge: Polyurethane | |
Body | Black anodized aluminum |
Cooling | Ports: Stainless steel |
Plugs: Stainless steel | |
Connectors | Power: Stainless steel, ABS and gold-plated copper. |
Data: Nickel-plated ABS, stainless steel, silicon, gold-plated copper. | |
Maximum Pressing Force on Flyway Surface | 1000N *** |
Max. Torque on Threads | M8x1.25 Threads: 30 Nm (10 mm min. engagement) |
M5x0.8 Threads: 8 Nm (5 mm min. engagement) | |
Cooling | |
Cooling Options | Passive, air convection or liquid cooling |
Water Cooling Specifications | |
Input/Output Fittings | Push to connect, 10mm OD tubing |
Max. Pressure | 50 psi |
340 kPa | |
3.4 bar | |
Flow Factor, Kv (Single Flyway) | 0.42 m3/h**** |
Maximum Recommended Number of Series Cooled Flyways | 8 Flyways***** |
Compatible Fluids | Distilled water, EuroTerm 131, (other fluids non-corrosive to aluminum or SS may be used, contact manufacturer for inquiries about compatibility with specific fluids) |
* Flyway modules must be powered by a “Certified” and/or “Listed” power supply.
** Achieving specified IP rating requires caps on unused signal and power ports. The require cap for PMNet connectors is CAP-WHDFHPA1. The require cap for power connectors is 8F1X0A.00001000K-1. For use in applications in adverse environments where moisture or pollution is present, please contact PMI for more details.
*** Pressing capacity is specified when a mover M3-06 is located at Flyway center. For other type of movers or movers located at none-center locations, pressing force capacity can be significantly higher. Contact PMI to discuss any specific pressing requirements.
**** Measured experimentally with 3/8” OD fittings installed on the Flyway.
***** More Flyways can be cooled in series connection depending on system or application parameters.
Cooling of the flyways is not necessary for most customer applications but can be used for temperature sensitive applications. See Flyway Cooling Setup and Liquid Cooling Guide for more information on cooling the flyways for specific applications.
