PMNet Cable NC-028-CR

General Data

Cable Name

2.8m PMNet cable

PMI Article Number

NC-028-CR

Short Description

Network cable for Planar Motor internal highspeed communication

Long Description

Network cable for Planar Motor internal highspeed data transfer

12 pin, A coded

Straight plug with push to lock connection

Black Housing

Cable length 2.8 m

Used for

Connection between PMC and Flyway

RoHS 2011/65/EU

EN IEC 63000:201

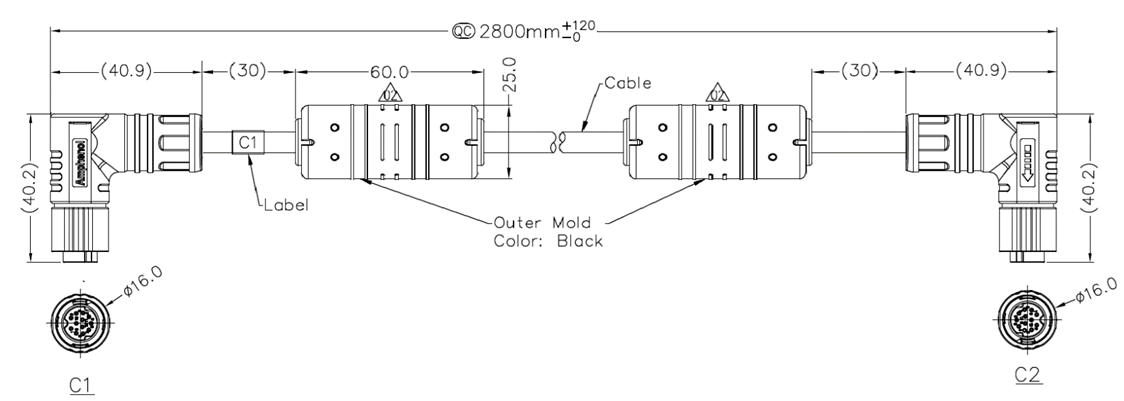

Dimensions

Length of cable

2.8 m

Cable weight

400 g

Diameter

9 mm

Characteristics Head 1

Plug Type

M12, 12 Pin Female, A coded with push lock[LH1]

Degree of Protection

IP68/ IP69K

Characteristics Head 2

Plug Type

M12, 12 Pin Female, A coded with push lock

Degree of Protection

IP68/ IP69K

Cable

Ferrite Cores

One at each end

Outer Jacket Colour

Black
