PMC Error Code Breakdown

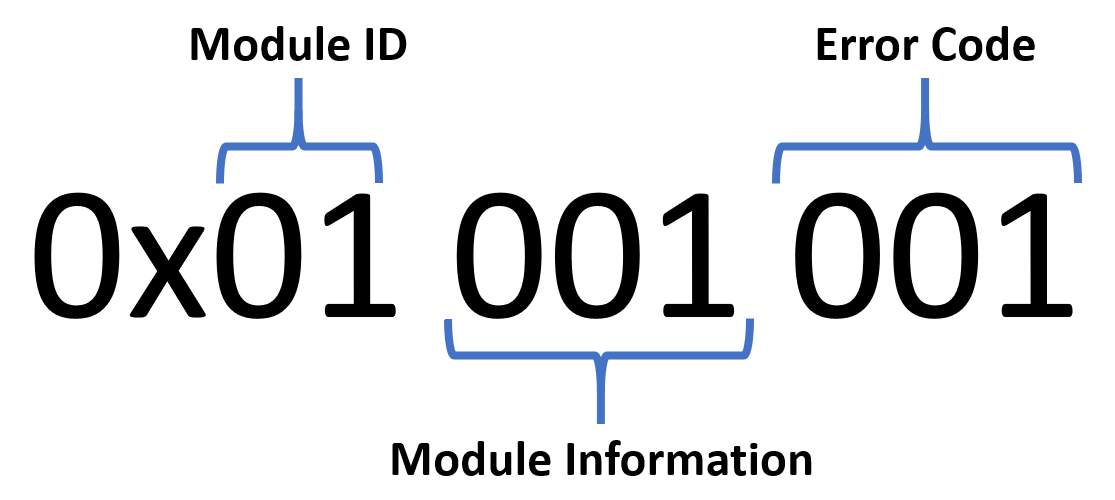

PMC error codes are constructed in the following format:
Module Name | Module ID (Hex) | Module Informaton (Hex) | Module Error Code (Hex) | Raw Number Range (Dec) |
|---|---|---|---|---|
System Error | 00 | Always 000 | From 1-14 | 0 - 16777215 |
Flyway Error | 02 | Flyway ID | From 1-26 | 33554432 - 50331647 |
XBot Error | 03 | XBot ID | From 1-6 | 50331648 - 67108863 |
Upon receiving the error code, translate the error code to Hex and check it against PMC Error Codes tables for detail.
