S4-xS-04.06

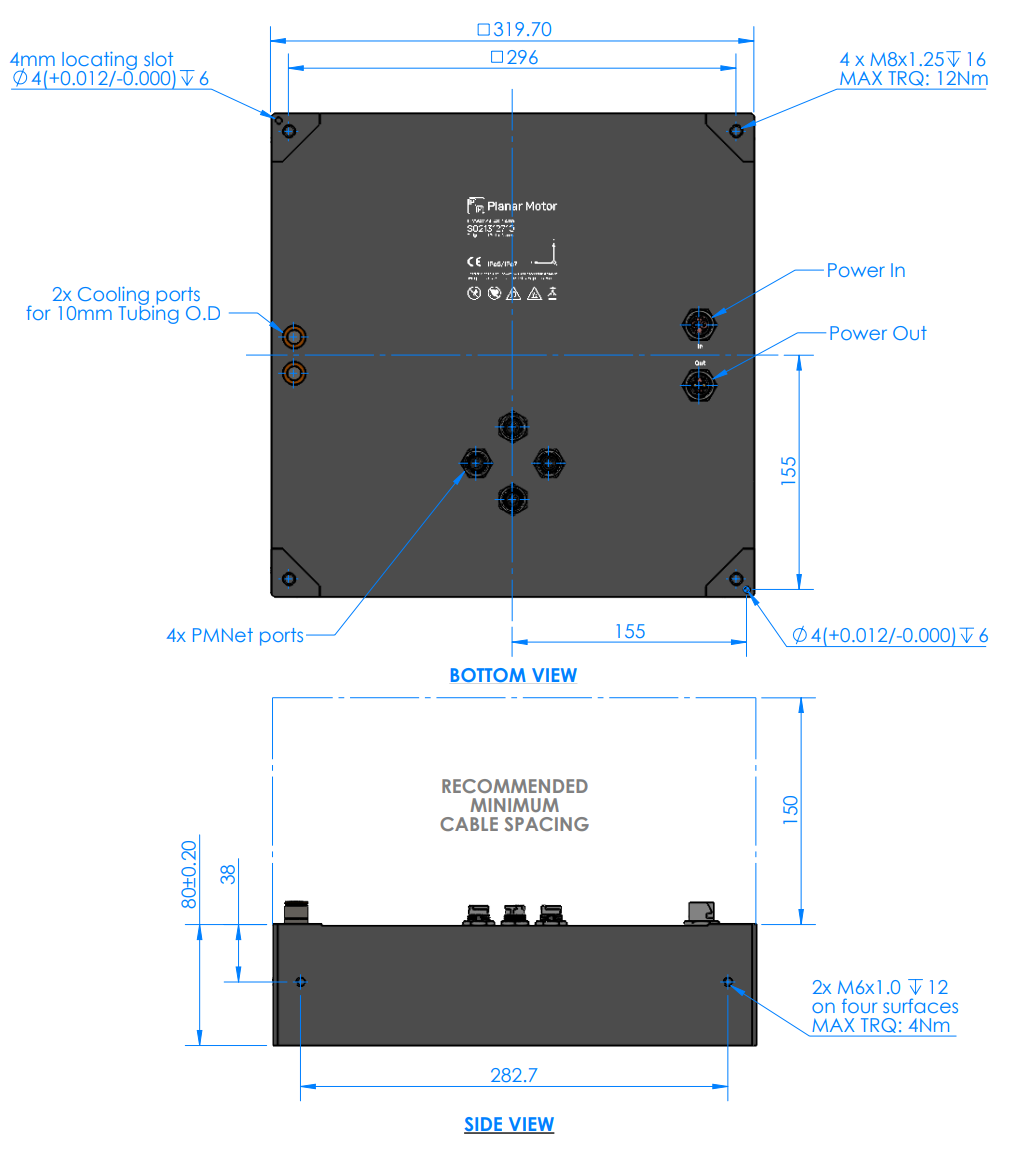

Dimensional drawing of Flyway S4-xS-04.06
Model number | S4-xS-04.06 |
Power Connection | |
Power Supply | |
Input Voltage | 48 – 58 VDC; Typ. 54 VDC* |
Input Current | 4.2 A (@54 VDC) |
Input Current (peak) | 27.7 A (@54 VDC) |
Power Consumption (peak) | 1500 W |
DC Bus Capacitance | - |
Max Cable Length | 20 m |
Power Enable Operation Voltage | Low (0 – 4 Vdc); High (20.5 - 27.5 VDC) |
DC bus connection | |
Protective measures | |
Overload protection | No |
Short circuit protection | No |
Interfaces | |
Type | PMNet connection to controller and/or adjacent Flyways |
Variant | 4 x PMNet Port |
Connector Type | 4 x M12, 12-Pin Male, A coded with push lock |
Cable Length | 0.6 m between adjacent Flyways 10 m from PMC |
Operating Conditions | |
Mounting Orientation | Horizontal |
Installation Elevation Above Sea Level | |
Nominal | 0 m to 500 m |
Maximum | 4000 m |
Protection Class | IP65/IP67** |
Ambient Conditions | |
Temperature (S4-AS/GS) | |
Operation | 5°C to 40°C |
Storage | -25°C to 70°C |
Transport | -25°C to 70°C |
Temperature (S4-TS) | |
Operation | -40°C to 60°C |
Storage | -40°C to 70°C |
Transport | -40°C to 70°C |
Relative Humidity | |
Operation | 5% to 85%, non-condensing |
Storage | 5% to 95% |
Mechanical Properties | |
Dimensions | |
Width | 319.7 mm |
Height | 80 mm |
Depth | 319.7 mm |
Weight | 13 kg |
Materials | |
Motor | Surface: Black solder mask |
Edge: Polyurethane | |
Body | Black anodized aluminum |
Cooling | Ports: Stainless steel |
Plugs: Stainless steel | |
Connectors | Power: Stainless steel, ABS and gold-plated copper. |
Data: Nickel-plated ABS, stainless steel, silicon, gold-plated copper. | |
Maximum Pressing Force on Flyway Surface | 2000 N*** |
Max. Torque on Threads | M8x1.25 Threads: 30 Nm (10 mm min. engagement) |
M5x0.8 Threads: 8 Nm (5 mm min. engagement) | |
Performance Variants | |||
| Code | ||
Parameter | A | G | T |
Gap Traversal Distance (mm) | Up to 6 | Up to 40 | |
Working Temperature (°C) | +5 to +40 | -40 to +70 | |
Form Factor Variants | |
| Code |
Parameter | S |
Size (mm) | 320 x 320 |
Revision | |
| Code |
Parameter | 06 |
Data Connector | M12 circular |
Power Connector | M18 circular |
* Flyway modules must be powered by a “Certified” and/or “Listed” power supply.
** Achieving specified IP rating requires caps on unused signal and power ports. The require cap for PMNet connectors is CAP-WHDFHPA1. The require cap for power connectors is 8F1X0A.00001000K-1. For use in applications in adverse environments where moisture or pollution is present, please contact PMI for more details.
*** Pressing capacity is specified when a mover M4-09 is located at Flyway center. For other type of movers or movers located at none-center locations, pressing force capacity can be significantly higher. Contact PMI to discuss any specific pressing requirements.
