PMNet Cable NC-005-CR

General Data

Cable Name

0.5m PMNet cable

PMI Article Number

NC-005-CR

Short Description

Network cable for Planar Motor internal highspeed communication

Long Description

Network cable for Planar Motor internal highspeed data transfer

12 pin, A coded

Right-angle plug with push to lock connection

Black Housing

Cable length 0.5 m

Used for

Connection between Flyways

Certification

E119932-I RU AWM STYLE 20276 80°C 30V VW-1

RoHS 2011/65/EU

EN IEC 63000:201

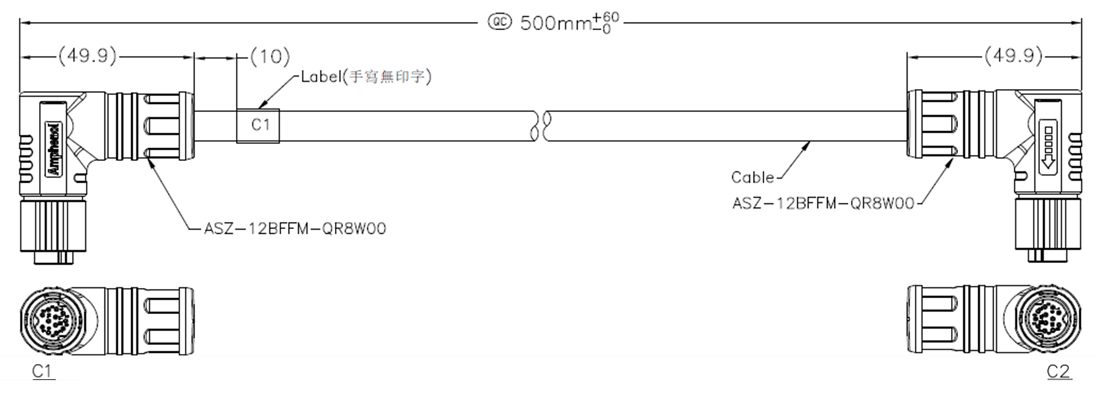

Dimensions

Length of cable

0.5 m

Cable weight

80 g

Diameter

8.5 mm

Characteristics Head 1

Plug Type

M12, 12 Pin Female, A coded with push lock

Degree of Protection

IP68/ IP69K

Characteristics Head 2

Plug Type

M12, 12 Pin Female, A coded with push lock

Degree of Protection

IP68/ IP69K

Cable

Ferrite Cores

None

Outer Jacket Colour

Black
